ETALON vacuum lifter
A vacuum lifter is an essential element of a modern cutting manufactory. Fast, easy, and damage-free material handling. Thanks to the revolutionary vacuum tube technology, one pump performs both lifting and gripping.
WATCH OUR MACHINE IN ACTION
Advantages of ETALON vacuum lifter
Easy to operate
Makes material handling effortless.
The price pays off in almost 1 year
Ideal for serving beam saws and CNC milling machines.
Fast, easy, and damage-free material handling.
Lifting and gripping are performed by a vacuum pump.
Machine features

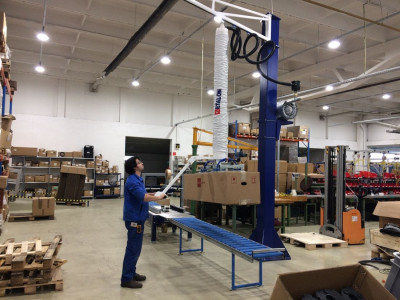

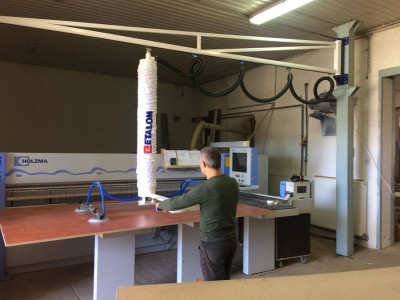

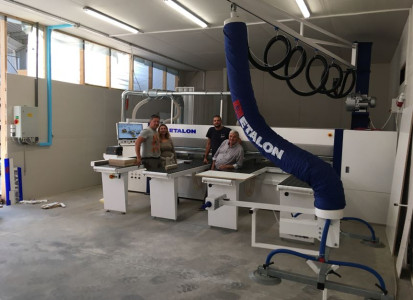

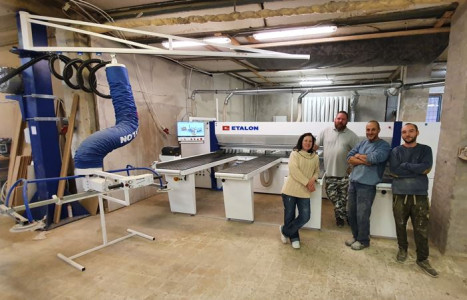

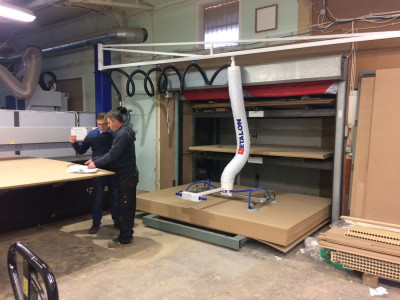

Using human force for material handling can result in significant additional costs. This is because, due to the size and weight of the furniture board, two people are required for the operation. In order to make one person sufficient for operating the cutting machine or CNC milling machine, it is advisable to install a vacuum lifter next to the machine. The vacuum tube lifter is a safe and cost-effective way to handle materials, and its major advantage is that both lifting and gripping are performed by a high-performance vacuum pump placed on the column. As a result, lifting is fast and infinitely adjustable, and the range of materials that can be handled with the device is wide.
- Furniture board
- OSB board
- MDF board
- Plastic sheets
- Metal sheets
- Custom products can also be lifted with special suction cups
Since the vacuum supply is provided by the pump, there is no need for compressed air supply! An exception to this is when the customer wants to move the board not only horizontally but also in a vertical position. The lifter is also available in a tiltable version! – tilting can be controlled by a push button on the control lever.
The device consists of two parts:

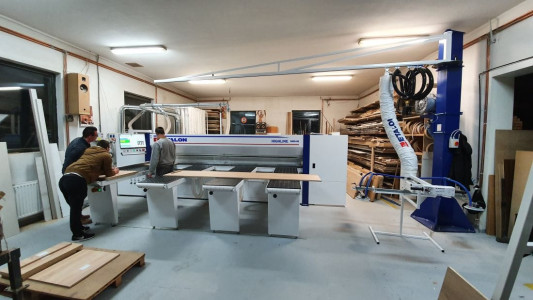

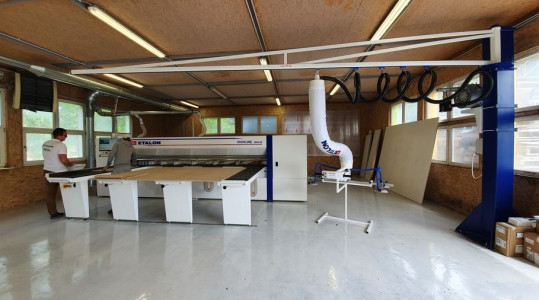

- Crane structure: The crane can be designed in various ways: column-mounted, wall-mounted, or custom. The selection depends on the workshop layout and the placement of the panel saw (or other machine). The length of the crane arm can also be optionally chosen, up to 6 meters!
- Vacuum tube gripper: When selecting the vacuum unit, the storage method of the workpiece must be considered. In our product range, both fixed and tilting-head designs are available, with the second variation having many useful applications.
All functions can be controlled from the control lever!
To protect the vacuum pump, a motor protection main switch is placed at a convenient height on the crane column. In addition, an air filter is installed in front of the pump to ensure long life. And a check valve protects the worker against falling.
Application: practically any material that can be processed on our panel saw: Furniture board, plastic or aluminum sheet, with a weight that does not exceed the load capacity.
Both the crane structure and the vacuum unit can be flexibly adapted to individual needs. Please contact us with your questions!
Available Accessories
Remote Start: The vacuum pump can be started directly from the control lever, remotely. This single button can save up to 40% of energy.

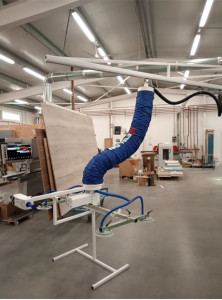

Vacuum lifter holder bracket: Custom structure for safe storage of the equipment.
Vacuum pump holder bracket: Vacuum pump that can be mounted on the wall or column.
Machine Specifications
The ETALON vacuum lifter is available in four different configurations. In the table below, you can compare the specifications of the 4 configurations.
90 kg - fixed | 90 kg – 90° | 150 kg - fixed | 150 kg – 90° | |
---|---|---|---|---|
Load capacity (kg) | 90 | 90 | 150 | 150 (90) |
Gripping slippers (pcs) | 4 | 4 | 4 | 4 |
Lifting speed (m/min) | 0 – 25 | 0 – 25 | 0 – 25 | 0 – 25 |
Hose diameter (mm) | 200 | 200 | 250 | 250 |
Vacuum pump power (kW) | 4 | 4 | 4 | 4 |
Tilt (+/-) | – | + | – | + |
Compressed air required - 6 bar | No | Yes | No | Yes |
Lifting height (mm) | 1550 | 1350 | 1550 | 1350 |
Max. vacuum hose clearance (mm) | 1450 x 750 | 1450 x 750 | 1450 x 750 | 1450 x 750 |
Adjustable vacuum piston distance | Yes | Yes | Yes | Yes |
Max. operating radius (mm) | 6000 | 6000 | 6000 | 6000 |
Column height (mm) | 3450 | 3450 | 3750 | 3750 |

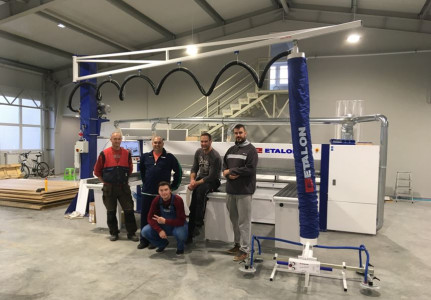

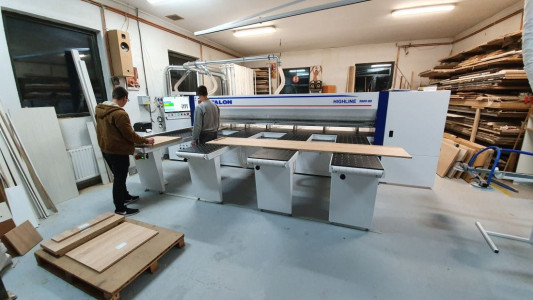

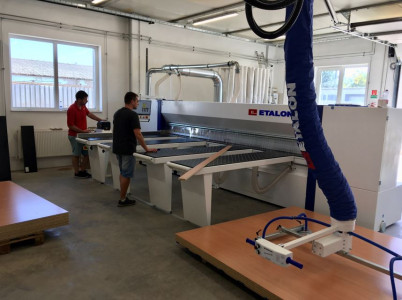

Preview of Our References
